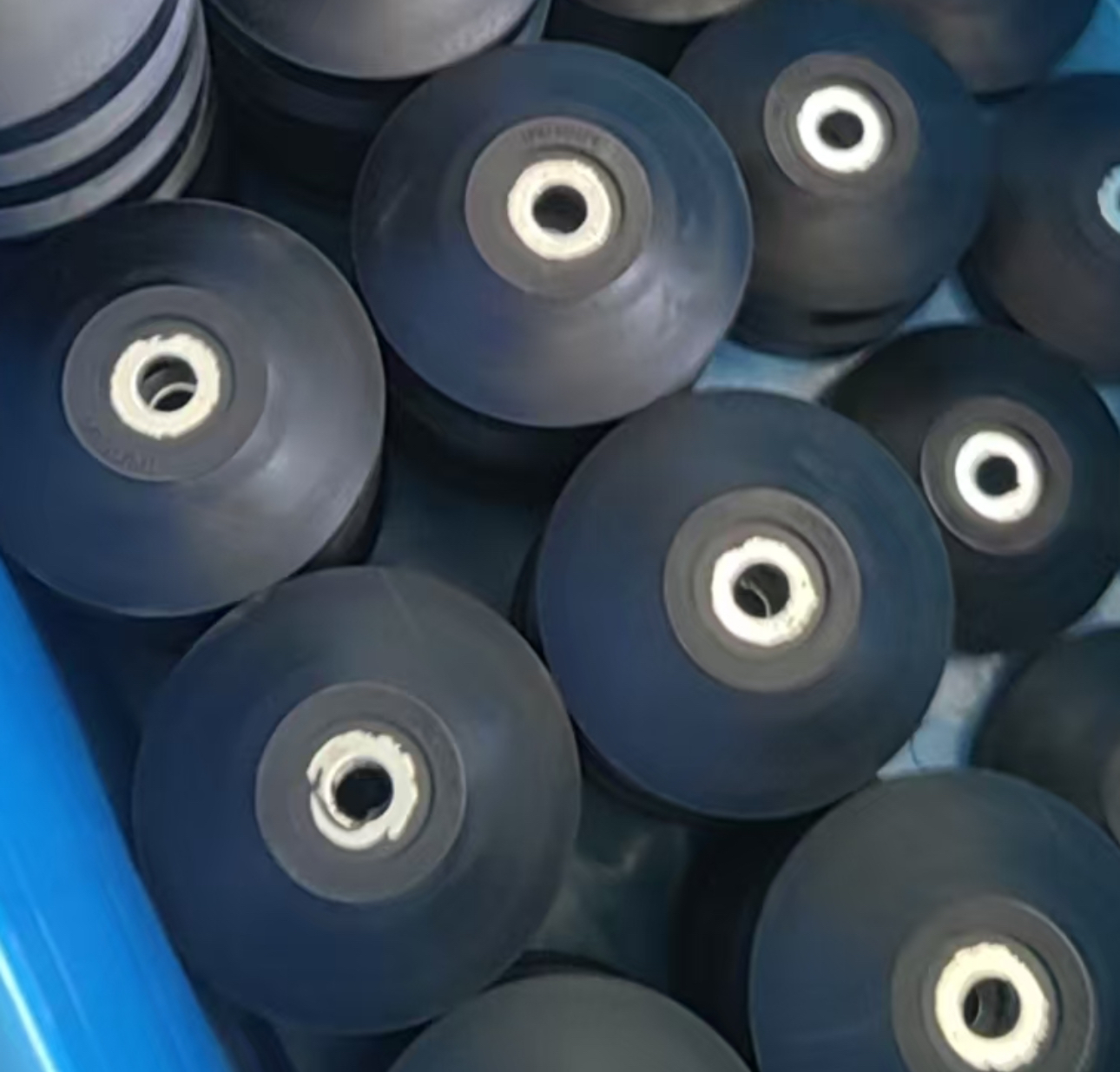

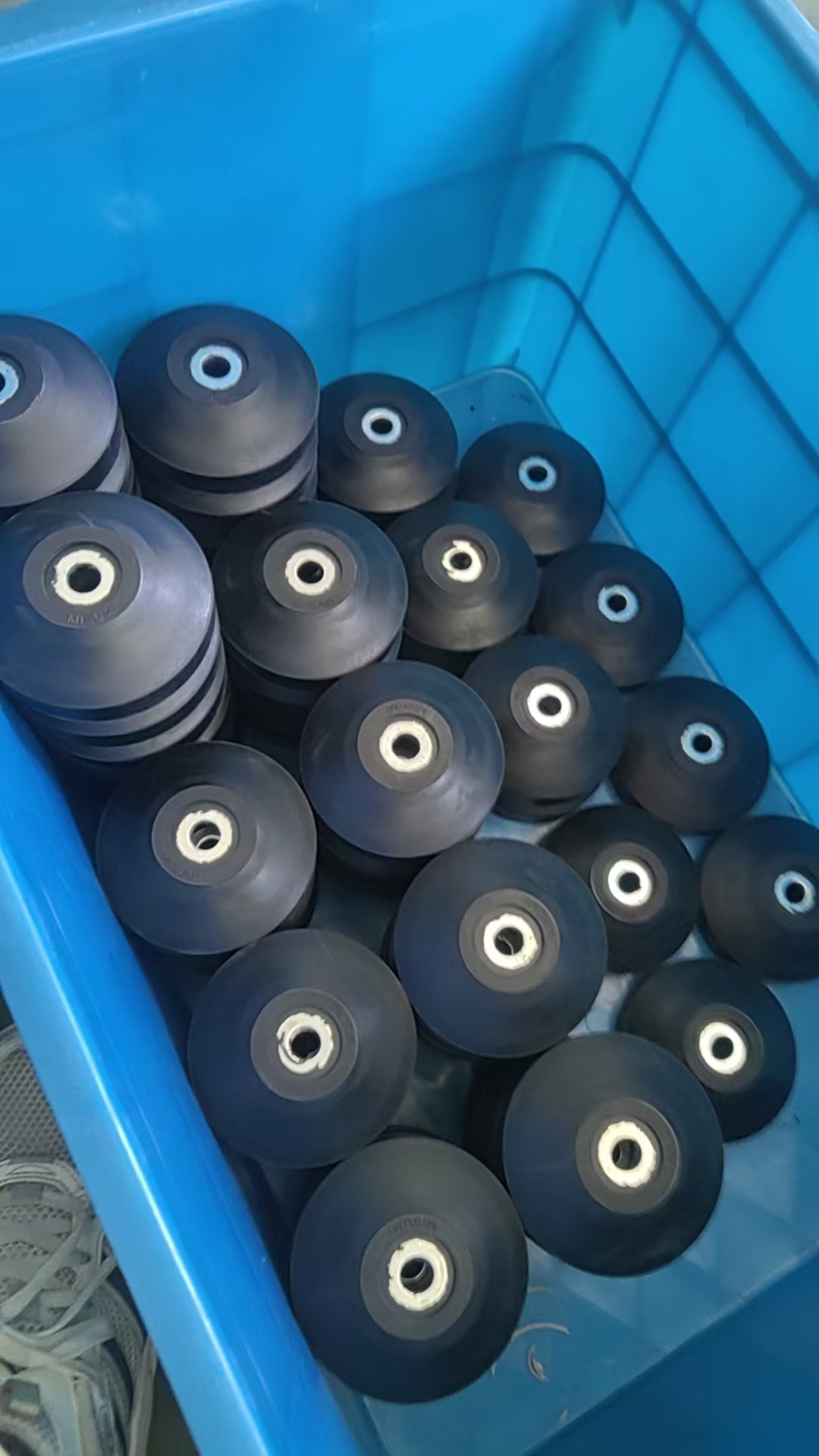

Custom Neoprene Bonded Aluminum 6061-T6 Anti-Vibration Bushing Sleeve
High-Performance NVH Control | Superior Metal-to-Rubber Bonding | Tailored Durometer Options
Product Overview
Engineered for demanding automotive and industrial applications, our Aluminum-Rubber Anti-Vibration Bushing Sleeves combine lightweight structural integrity with exceptional dynamic damping. Precision-machined from high-grade 6061-T6 aluminum alloy and overmolded with premium Neoprene (CR) rubber, these sleeves effectively isolate vibration, reduce operational noise (NVH), and protect machinery components from premature wear.
We offer full customization on rubber durometer ratings (Shore A 50, 60, or 70) to match your specific vibration frequency and load-bearing requirements.
Technical Specifications
Feature / Parameter Specification / Material
Metal Sleeve Material Premium Aluminum Alloy 6061-T6 (High strength-to-weight ratio, excellent corrosion resistance)
Elastomer Material High-Grade Neoprene (Chloroprene Rubber / CR)
Available Rubber Hardness Shore A 50, 60, 70 (±5 Shore A tolerance)
Bonding Technology Advanced Chemical Metal-to-Rubber Vulcanization Bonding (High Shear Resistance)
Working Temperature −40 ℃ to +120℃ (Intermittent up to +130 ℃)
Key Properties Oil & Weather Resistance, UV Stability, Excellent Dynamic Fatigue Resistance
Surface Treatment Anodized Aluminum / Degreased & Chemically Treated for Maximum Adhesion
Manufacturing Capability OEM / ODM Custom Drawings (STEP, IGES, DWG) & Prototype Sampling
Key Advantages & Performance Features
Aircraft-Grade 6061-T6 Aluminum Core: Delivers superior tensile strength and rigidity while significantly reducing overall assembly weight compared to traditional steel bushings.
Customizable Damping Characteristics:
Shore 50A: Ideal for soft damping, high-frequency vibration absorption, and low-load isolation.
Shore 60A: The industry-standard balance between mechanical stability and impact absorption.
Shore 70A: Designed for heavy-load applications requiring stiff suspension control and minimal deflection.
Delamination-Free Metal Bonding: Utilizing specialized primers and hot-vulcanization techniques, our rubber-to-metal bond withstands extreme torsional stress and high shear forces without peeling.
Resilient Neoprene Elastomer: Offers excellent resistance to ozone, aging, mild chemicals, and petroleum-based fluids.
🚜 Typical Applications
Automotive & Commercial Vehicles: Suspension control arm bushings, engine mounts, subframe dampers.
Industrial Machinery: Heavy-duty pumps, motor isolation mounts, conveyor systems.
Marine & Outdoor Equipment: Corrosion-resistant vibration isolators for harsh environments.
Precision Electronics & Aerospace: Lightweight chassis damping sleeves.
💡 Custom OEM Orders Welcome
Have specific tolerances, custom dimensions, or CAD drawings? Contact our engineering team today for DFM analysis and instant pricing quotes!
